鋁合金導向軸系列現已停產。

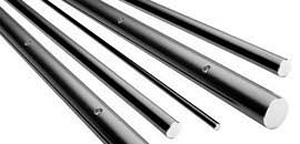

Thomson超輕鋁合金LinearRace導向軸是滑動軸承應用中標準Thomson 60 Case的輕量化替代品。除了重量輕65%的優點，超輕鋁合金導向軸還具有超強耐腐蝕性，適用于水洗和水下環境（相較于大多數隨時間銹蝕的鋼質導向軸）。作為非磁性材料，鋁合金導向軸是醫學影像應用的理想選擇。
| 標稱直徑 | 選型 | 直徑公差 | 長度公差 | 每英寸重量 | |
|---|---|---|---|---|---|
| 最小值 | 最大值 | ||||
| 1/4 | 實心 | 0.2488 | 0.2496 | +/- 1/32 | 0.005 |
| 3/8 | 實心 | 0.3738 | 0.3746 | +/- 1/32 | 0.010 |
| 1/2 | 實心或預鉆孔 | 0.4988 | 0.4996 | +/- 1/32 | 0.019 |
| 5/8 | 實心或預鉆孔 | 0.6238 | 0.6246 | +/- 1/32 | 0.030 |
| 3/4 | 實心或預鉆孔 | 0.7488 | 0.7496 | +/- 1/32 | 0.043 |
| 1 | 實心或預鉆孔 | 0.9988 | 0.9996 | +/- 1/32 | 0.077 |
Thomson 60 Case Linear Race shafting has been popular for decades for its consistent reliability and performance. To help customers get this high-quality, lab-tested product into their hands as quickly as possible for their time-sensitive design projects, Thomson goes to great lengths.
With the special machining add-on to the Thomson online shafting selector tool, the burden of creating 2D drawings is relieved, and the amount of time needed to specify the machined shaft is dramatically reduced.
Watch this comprehensive demo and see how this feature offers the most commonly used machining options, which are automatically converted to manufacturable 2D drawings for download as printable PDFs or sharable links.
Try the online shafting selector tool and special machining add-on at: https://www.thomsonlinear.com/en/products/shafting
For any cases in which your machining configurations don't fall within the scope of our tool's options, Thomson application engineers are always ready to provide fast help.
